LED LATTICE
SAMPLE VIDEO BELOW

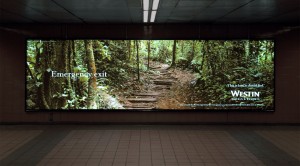

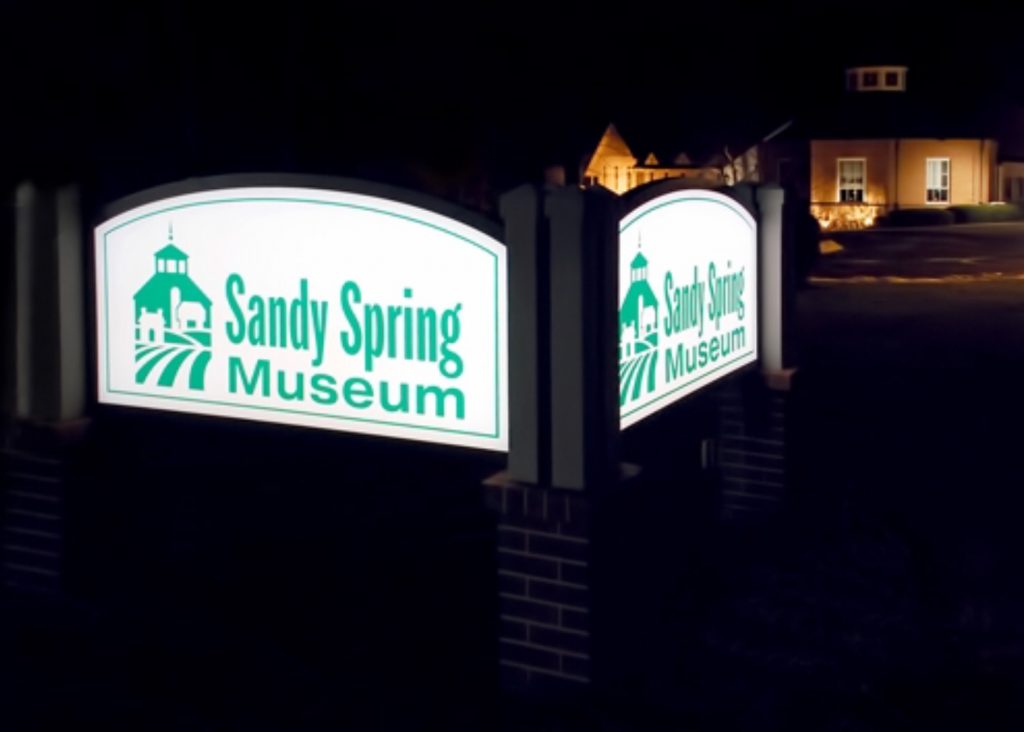

CPD Lighting offers a fully customized LED Lattice for backlighting sign boxes. Beautifully bright light meets low energy use with this large format backlighting system. Our LED Lattice is an extremely cost effective way to illuminate your sign box. Our LED Lattice is also a quick way to install LEDs as opposed to layering the LEDs onsite. Simply unroll the LED Lattice into your sign box and you are finished. Contact us today for more information!
FEATURES
Technical Information
| Specifications | |
|---|---|
| Input Voltage | 12V / 24V DC |
| Wattage | 1 W/Chip |
| Color Temperature | 2800-3200 K 6000-6500 K 10000-11000 K |
| Storage Temperature | -30 °C ~ +40 °C |
| Operating Temperature | -30 °C ~ +40 °C |
| Waterproof level | Solution 1: IP20 Solution 2: IP65 |
| Luminous Efficiency | 100-110 lm / W |
| CRI | Ra ≥ 75 |
| Beam Angle | 170° |
| Cuttable Length | 7.48" (190 mm) |
| Dimensions (module) 3030 | 18 LEDs / PCB bar 45 7/25” (1150 mm) L x 21/32” (16.8 mm) W x 1/2” (12.5 mm) H |
| ABROAD SIZE CHART: | ||
|---|---|---|
| Example | Light Box Depth | Vertical Spacing Between PCB Bars |
| 1 | 30-50mm | About 85mm |
| 2 | 60-80mm | About 120mm |
| 3 | 80-120mm | About 150mm |
| 4 | More than 120mm | About 20mm |
